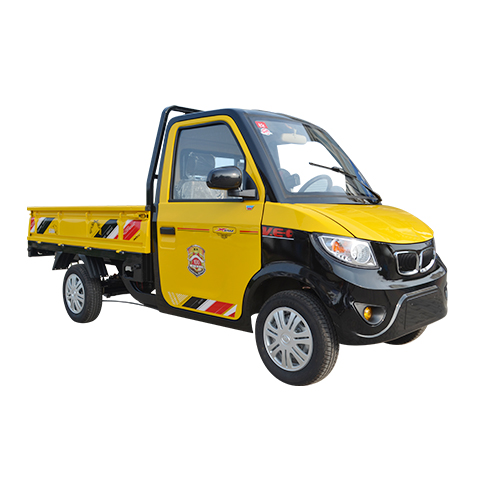

Technical Datasheet of Electric Truck Gaia-ET

Electric Vehicle Brand & Model

Gaia & G-ET

Carrying Number

2 people




Enquiry now

Item

Type

Parameter

Vehicle parameters

Body size: L*W*H (mm)

3700*1320*1680

Wheel Base (mm)

2700

Front wheelbase (mm)

1100

Rear wheelbase (mm)

1140

Ground clearance (mm)

180

Number of doors

2

Number of seats

2

Weight (kg)

720

Maximum Load Mass (kg)

800

performance index

Maximum speed (Km/h)

35

Maximum driving distance

100KM (Empty Load)

Charging mode

Slow charge

Charging time (h)

8-10

Maximum climbing angle

≥30%

Drive

Driving mode

FWD

Power battery

Battery type

Maintenance free battery

Rated voltage

12V

Number of Batteries

6

Rated capacity

100AH

Nominal quantity of electricity

7.2KWH

Drive motor

Type of motor

AC motor

Motor model

XQY4-60-H2

Rated power

4KW

Peak torque

70N.m

Motor controller

Input voltage

72V

Transmission case

Gearbox type

Automatic

Shift mode

push rod

Block number

3(D/N/R)

Chassis

Front suspension type

Integrated front axle + Damping   Spring

Rear suspension type

Bow leaf spring + Lifting Lug

Front brake type

Disc brake

Rear brake type

Drum brake

Parking brake type

Hand brake

Tire specification

145/70 R12

Hub material

 Aluminium   alloy

Safety equipment

Vehicle central control lock

YES

Remote key

YES

Hill Start Assist

YES

Rear View Camera

YES

Reverse Sensor

YES

Charging to prevent leakage

YES

Charging automatic power failure

YES

Brake power break

YES

Vehicle body stability control

Combination Braking   System

Failure beep alarm

YES

Vacuum Hydraulic Brake Assistance

YES

Direction assistance

YES

Automatic locking

YES

Child safety lock

YES


Other configuration

4   *electric lifting doors and windows

Combined   headlamp

FM   radio

Combined   rear taillight

Fog   lamp / Cornering lamp / Far and near light / Hazard warning flash lamp

Front   seat belt

Defrosting   of warm air

Multi   stage windscreen wiper

Adjustable   external rearview mirror

Automobile   radial vacuum tire

Top   reading lamp

Sun   visor

Integral   flip rear seat

Knitted   seat

Composite   dashboard

Light   and wiper combination switch

Color   Touch LCD Screen

Music/Video/Picture   player

Bluetooth   hands-free call

Multilingual   handoff

USB/SD   interface
